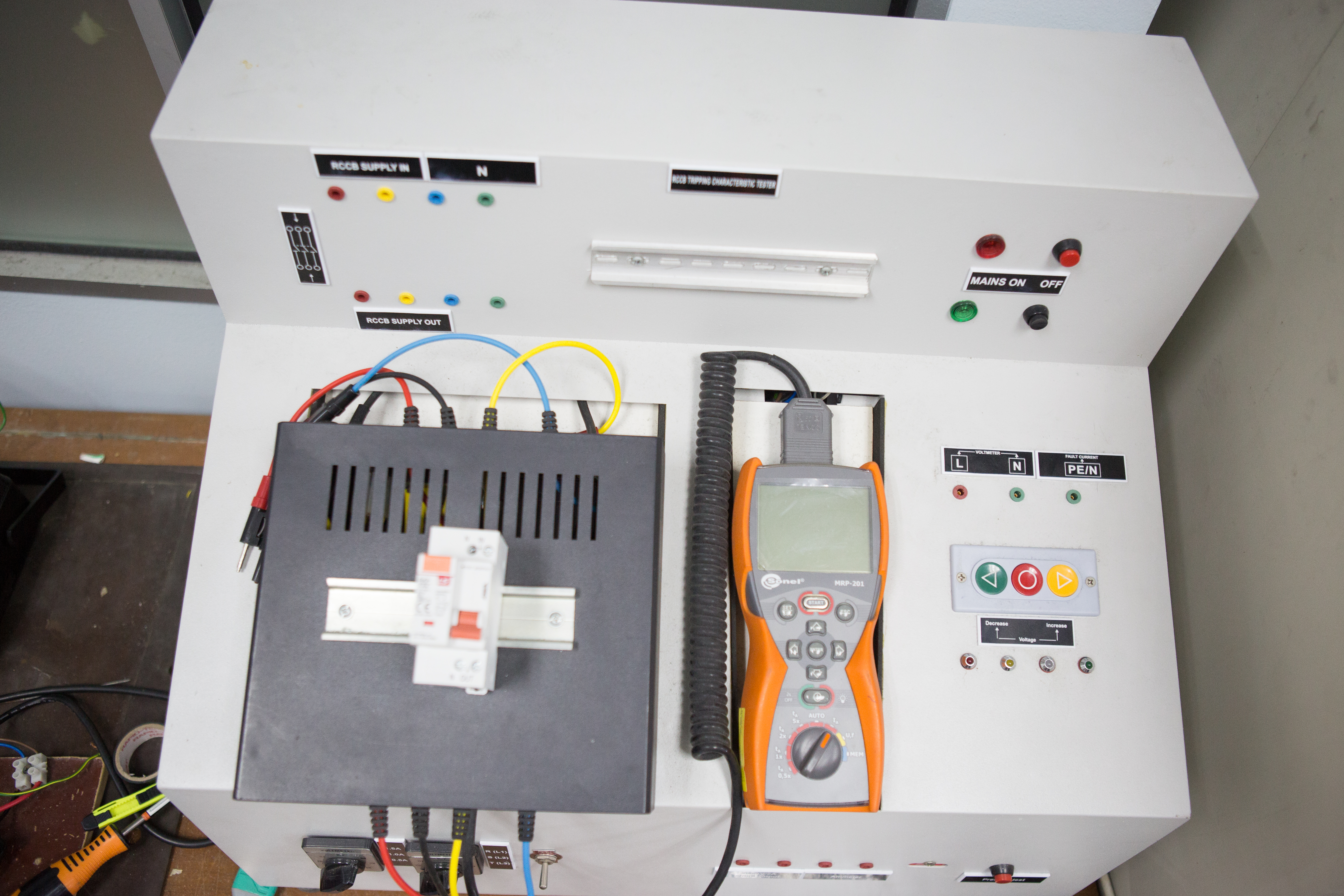

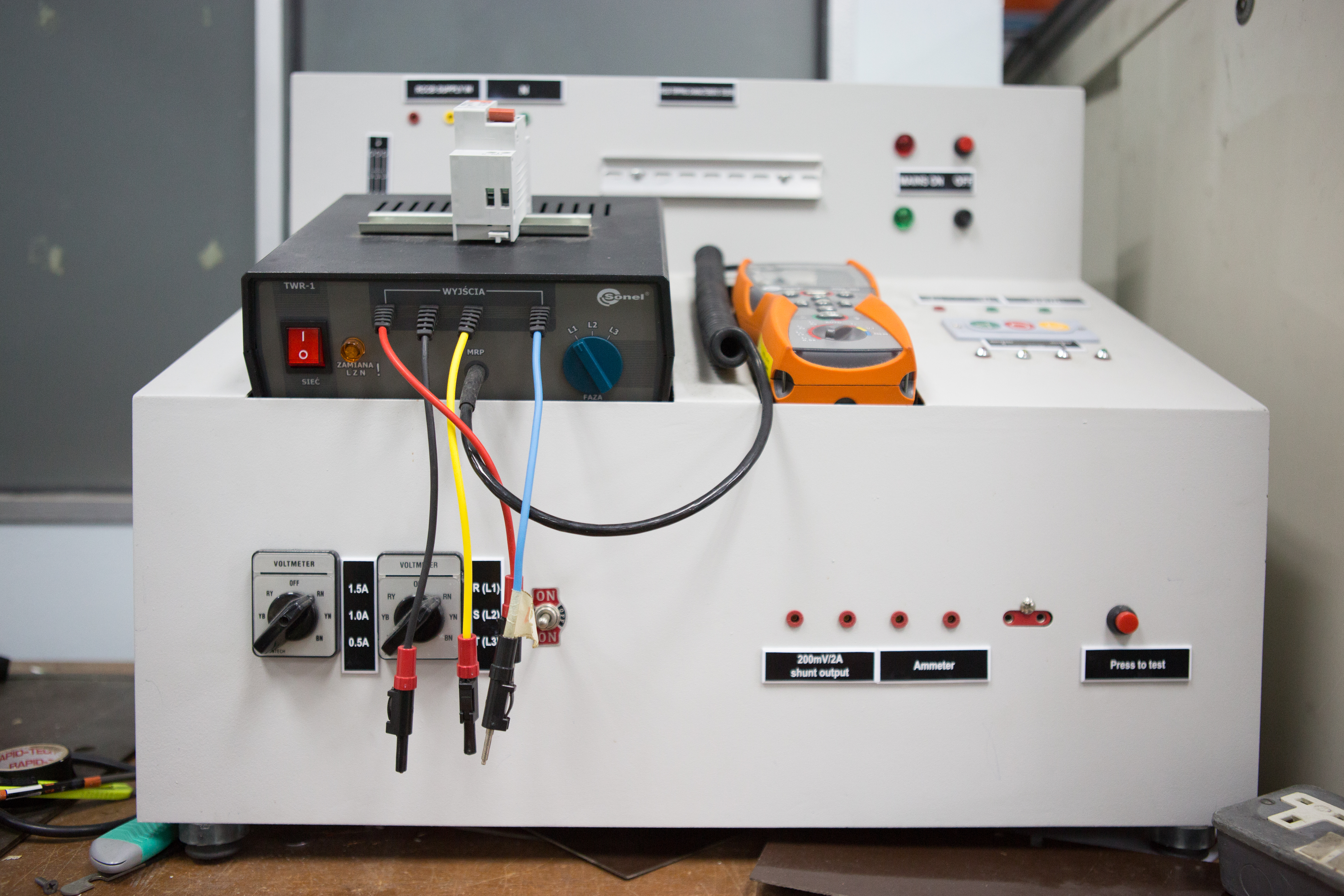

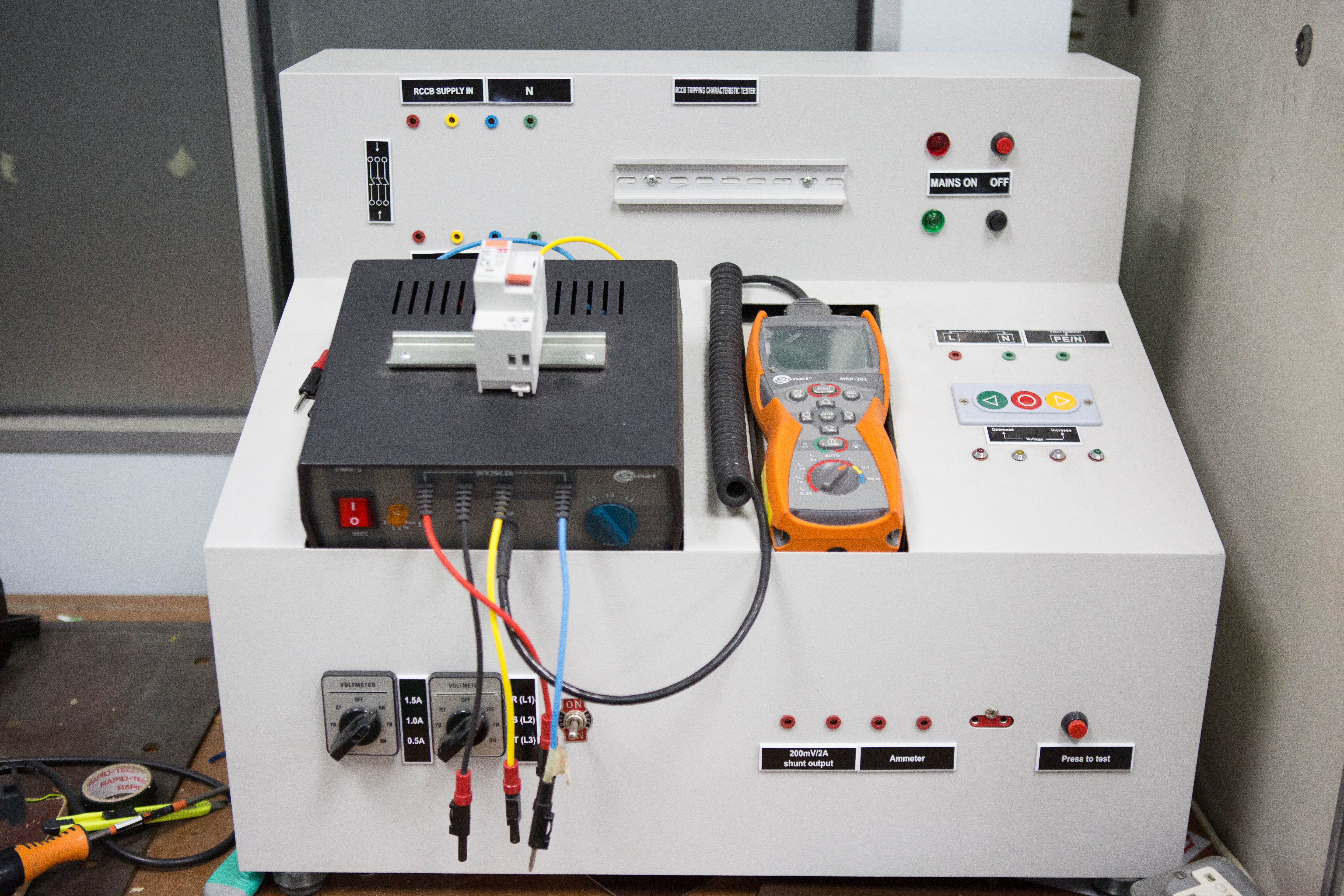

RCCB/ELCB Tester
The above product is designed to test the tripping characteristics of RCCB (residual current circuit breaker). It is designed to fully cater to the test requirement of IEC 61008, MS IEC 61008. The test is carried out at rated voltage of 240V and at variable voltage from 180V to 270V as per the IEC test requirement at different voltage ranges.
General Specification
- Input voltages: 415V+N/240Vac ± 6%
- Output voltage; variable through carbon brush type variance :0 – 275V.
- Selectable leakage current ranges: (10, 30, 100, 300, 500) mA for higher current up to 2500mA is through selector switch and time capturing using PICO oscilloscope lined to PC.
- Delay angle adjustment, 0-degree, 90 degree, 180 degree.

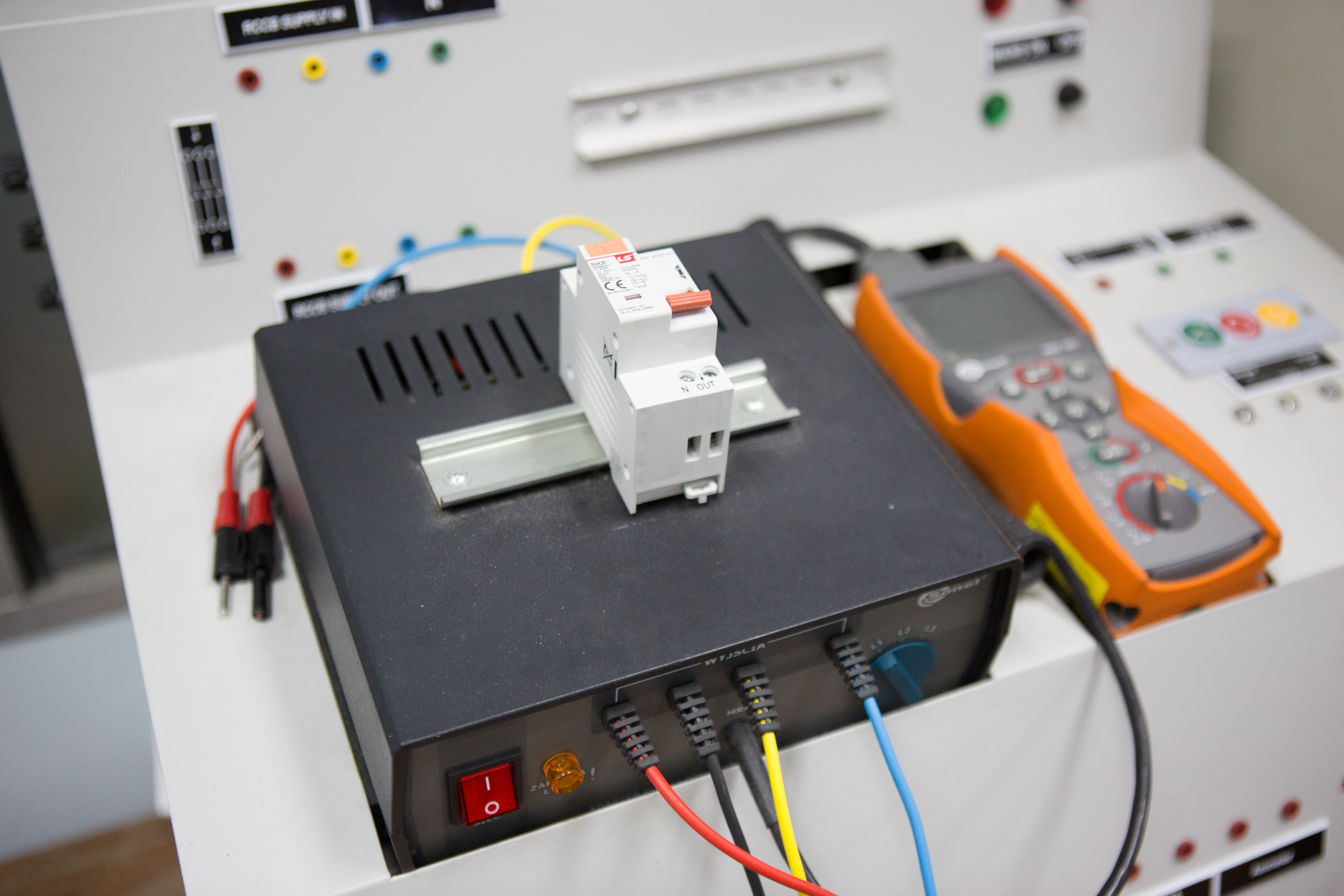

- The above is custom designed incorporating SONEL RCD tester.
- The leakage current is tested between each pole and neutral for (3P+N) type RCCB.
